Pre-baked Carbon Anode

Short Description:

The anode carbon block plays a key role in the aluminum electrolysis process, mainly including conductivity, participation in redox reactions, and structural support. The anode carbon block has good conductivity and can effectively transfer current to the electrolyte in the electrolytic cell, thereby promoting the progress of electrochemical reactions. In the electrolytic production of aluminum, anode carbon blocks act as anodes to participate in redox reactions. In this process, carbon materials are oxidized, releasing electrons that flow through the circuit to the cathode, helping to reduce metallic aluminum from alumina. In addition to the chemical reactions mentioned above, the anode carbon block also plays a certain structural support role in the electrolytic cell, helping to maintain its stability. In addition, the quality of anode carbon blocks has a significant impact on the production efficiency and energy consumption of electrolytic aluminum. High quality anode carbon blocks can improve current efficiency, reduce energy consumption, and minimize anode effects, thereby enhancing the economic and environmental sustainability of aluminum production.


  • Contact Person: mike@ykcpc.com
  • Product Detail

    FAQ

    Product Tags

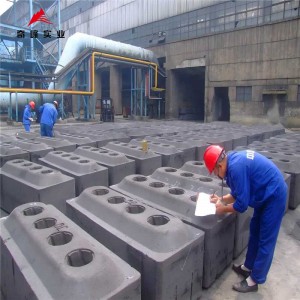

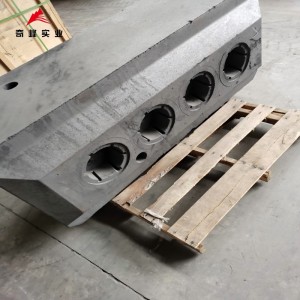

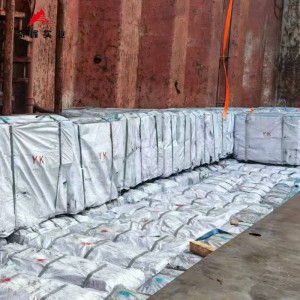

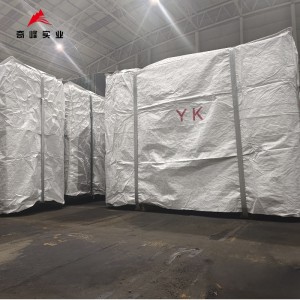

    Prebaked Carbon Anode Shipment Overview

    d57cfd9702de4566b5cfffc6674209c3_副本_副本
    Hbb67f7850347456e96e863986e3e84e5M(1)_副本
    微信图片_20240820152106_副本
    微信图片_20240820152032_副本

    Technical Data Sheet



     Item  Unit
     Data
    Apparent density   g/cm3 ≥1.53
    Real density   g/cm3 ≥2.04
    Compressive strength   MPa ≥32.0
    Residual anode rate   % ≥80.0
    Electrical resistivity    μΩ·m ≤55
    Thermal expansion coefficient   10/K   ≤5.0
    Ash content   ≤0.5
    Size 1000×710×560mm, 1000×720×540mm, 1120×700×560mm1450×700×600mm,1450×660×570mm,1450×660×540mm,1500×660×660mm, 1500×660×570mm, 1600×700×590mm,1350×810×635

    Note: The Technical data are based on the EN/ISO/DIN standards. They serve to give general information, they are liable to natural deviations, depending on production and shape. They are not to be cited and guaranteed properties or guaranteed values.



    Specifications can be customized according to customer requirements.
